Extra Activity 1

Question 1: Constructing a directed graph

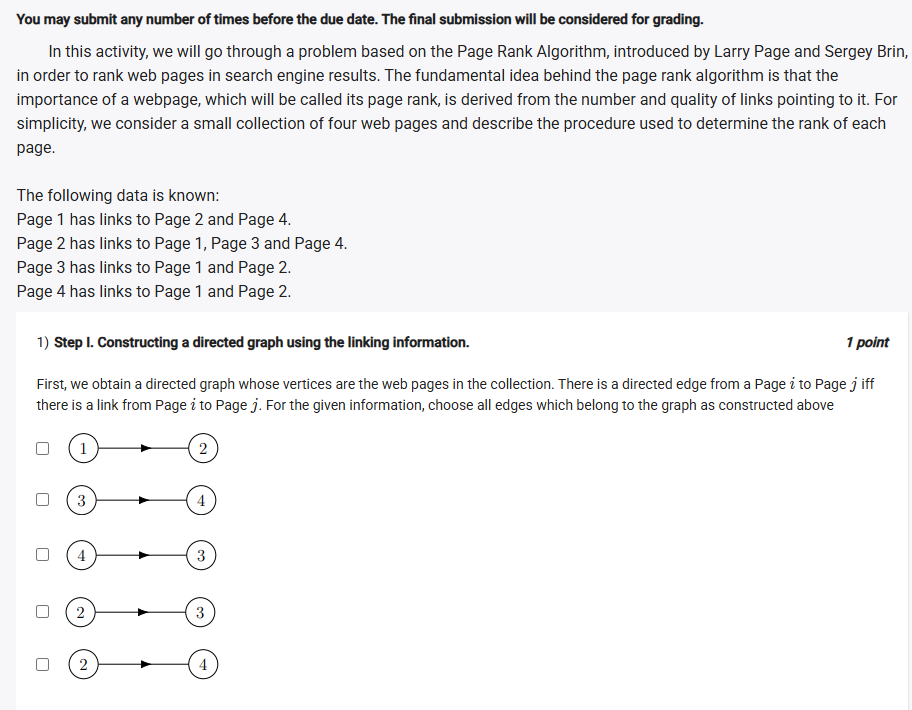

The Question: First, we obtain a directed graph whose vertices are the web pages in the collection. There is a directed edge from a Page $i$ to Page $j$ iff there is a link from Page $i$ to Page $j$. For the given information, choose all edges which belong to the graph as constructed above.

Core Concept: We need to translate the given linking information into a visual representation of a directed graph. A link from Page A to Page B is shown as an arrow: A $\to$ B.

Detailed Solution: Let’s list the links given in the problem description:

• Page 1 has links to Page 2 and Page 4. (Edges: $1 \to 2$, $1 \to 4$)
• Page 2 has links to Page 1, Page 3 and Page 4. (Edges: $2 \to 1$, $2 \to 3$, $2 \to 4$)
• Page 3 has links to Page 1 and Page 2. (Edges: $3 \to 1$, $3 \to 2$)
• Page 4 has links to Page 1 and Page 2. (Edges: $4 \to 1$, $4 \to 2$)

Now, we check the options provided in the image:

• $1 \to 2$: This is in our list. Correct.
• $3 \to 4$: This is not in our list. Page 3 only links to 1 and 2. Incorrect.
• $4 \to 3$: This is not in our list. Page 4 only links to 1 and 2. Incorrect.
• $2 \to 3$: This is in our list. Correct.
• $2 \to 4$: This is in our list. Correct.

Final Answer: The edges that belong to the graph are $1 \to 2$, $2 \to 3$, and $2 \to 4$.

Question 2: Obtaining the transition matrix

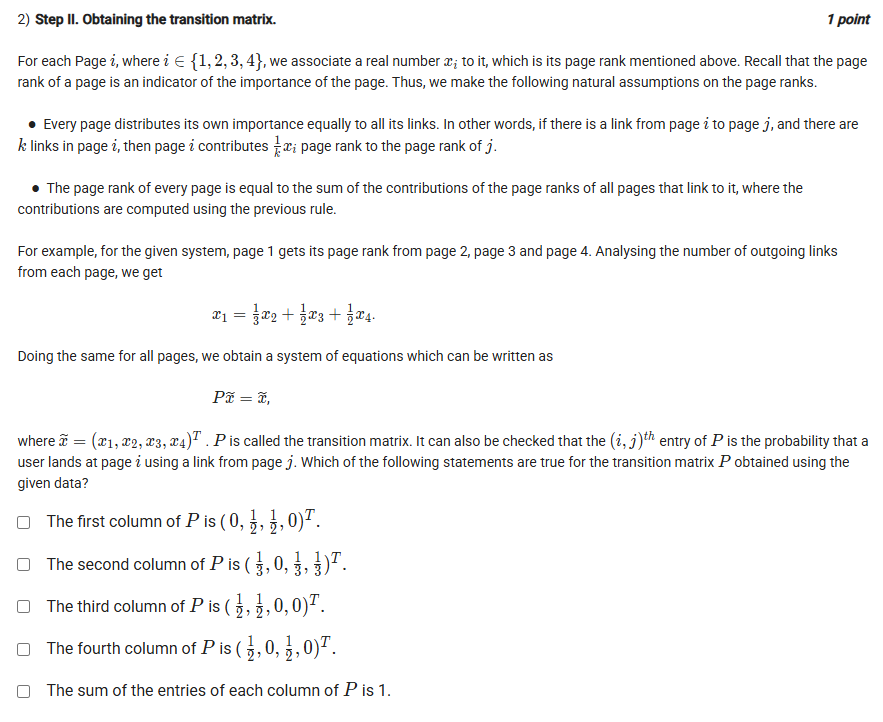

The Question: Which of the following statements are true for the transition matrix $P$ obtained using the given data?

Core Concept: The transition matrix $P$ describes how “importance” or page rank is passed between pages. The entry in the $i$-th row and $j$-th column, $P_{ij}$, represents the contribution from page $j$ to page $i$. If page $j$ has $k$ total outgoing links, it contributes $\frac{1}{k}$ of its rank to each page it links to. Therefore, the $j$-th column of the matrix represents the links from page $j$.

Detailed Solution: First, let’s determine the number of outgoing links from each page:

• Page 1: 2 outgoing links (to 2, 4)
• Page 2: 3 outgoing links (to 1, 3, 4)
• Page 3: 2 outgoing links (to 1, 2)
• Page 4: 2 outgoing links (to 1, 2)

Now we construct the matrix $P$ column by column:

• Column 1 (From Page 1): Links to 2 and 4. It contributes $\frac{1}{2}$ to each. The column is $(0, \frac{1}{2}, 0, \frac{1}{2})^T$.
• Column 2 (From Page 2): Links to 1, 3, and 4. It contributes $\frac{1}{3}$ to each. The column is $(\frac{1}{3}, 0, \frac{1}{3}, \frac{1}{3})^T$.
• Column 3 (From Page 3): Links to 1 and 2. It contributes $\frac{1}{2}$ to each. The column is $(\frac{1}{2}, \frac{1}{2}, 0, 0)^T$.
• Column 4 (From Page 4): Links to 1 and 2. It contributes $\frac{1}{2}$ to each. The column is $(\frac{1}{2}, \frac{1}{2}, 0, 0)^T$.

Let’s evaluate the given statements:

• “The first column of $P$ is $(0, \frac{1}{2}, 1, 0)^T$.” - FALSE.
• “The second column of $P$ is $(\frac{1}{3}, 0, \frac{1}{3}, \frac{1}{3})^T$.” - TRUE.
• “The third column of $P$ is $(\frac{1}{2}, \frac{1}{2}, 0, 0)^T$.” - TRUE.
• “The fourth column of $P$ is $(\frac{1}{2}, 0, \frac{1}{2}, 0)^T$.” - FALSE.
• “The sum of the entries of each column of $P$ is 1.” - Let’s check:
  • Col 1: $0 + \frac{1}{2} + 0 + \frac{1}{2} = 1$
  • Col 2: $\frac{1}{3} + 0 + \frac{1}{3} + \frac{1}{3} = 1$
  • Col 3: $\frac{1}{2} + \frac{1}{2} + 0 + 0 = 1$
  • Col 4: $\frac{1}{2} + \frac{1}{2} + 0 + 0 = 1$ This statement is TRUE.

Final Answer: The true statements are:

• The second column of $P$ is $(\frac{1}{3}, 0, \frac{1}{3}, \frac{1}{3})^T$.
• The third column of $P$ is $(\frac{1}{2}, \frac{1}{2}, 0, 0)^T$.
• The sum of the entries of each column of $P$ is 1.

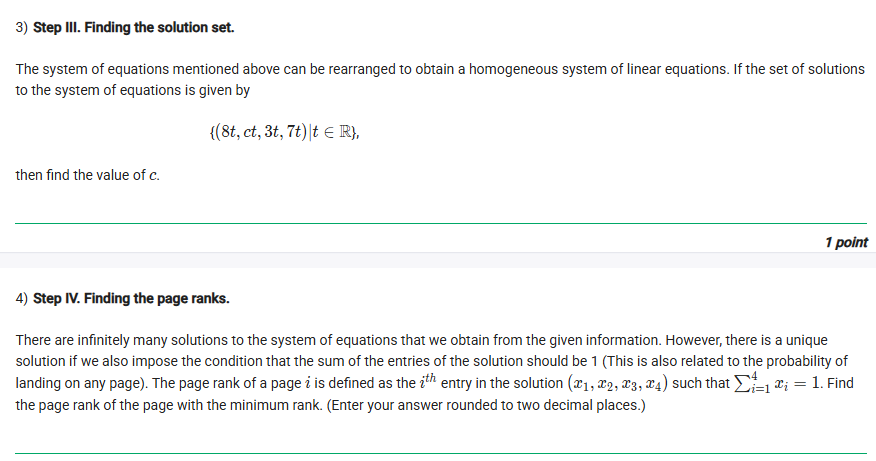

Question 3: Finding the solution set

The Question: The system of equations mentioned above can be rearranged to obtain a homogeneous system of linear equations. If the set of solutions to the system of equations is given by ${(8t, ct, 3t, 7t)|t \in \mathbb{R}}$, then find the value of $c$.

Core Concept: The solution set represents the eigenvectors corresponding to the eigenvalue 1 of the matrix $P$. This means any vector from the solution set, for example when $t=1$, must satisfy the system of equations $P\vec{x} = \vec{x}$.

Detailed Solution: The system of equations is given by the rows of the matrix $P$ we found in the previous step. The third equation (third row) is the simplest:

This simplifies to:

We are given a general form for the solution: $(x_1, x_2, x_3, x_4) = (8t, ct, 3t, 7t)$. Let’s substitute these into our simple equation:

Assuming $t \neq 0$, we can divide both sides by $t$:

Multiplying both sides by 3 gives:

Final Answer: The value of $c$ is 9.

Question 4: Finding the page ranks

The Question: There are infinitely many solutions to the system of equations that we obtain from the given information. However, there is a unique solution if we also impose the condition that the sum of the entries of the solution should be 1. The page rank of a page $i$ is defined as the $i^{th}$ entry in the solution $(x_1, x_2, x_3, x_4)$ such that $\sum_{i=1}^4 x_i = 1$. Find the page rank of the page with the minimum rank. (Enter your answer rounded to two decimal places.)

Core Concept: To find the unique page rank vector, we take the general solution and “normalize” it by enforcing the condition that the sum of its components must equal 1.

Detailed Solution:

1. From the previous question, we have the general solution vector: $\vec{x} = (8t, 9t, 3t, 7t)$
2. Apply the condition that the sum of the components is 1: $$8t + 9t + 3t + 7t = 1$$ $$27t = 1$$ $$t = \frac{1}{27}$$
3. Now substitute this value of $t$ back into the solution vector to find the specific page ranks:
   • Page Rank 1 ($x_1$) = $8t = \frac{8}{27}$
   • Page Rank 2 ($x_2$) = $9t = \frac{9}{27}$
   • Page Rank 3 ($x_3$) = $3t = \frac{3}{27}$
   • Page Rank 4 ($x_4$) = $7t = \frac{7}{27}$
4. Identify the minimum rank: Comparing the numerators (8, 9, 3, 7), the smallest value is 3. The minimum page rank is $x_3 = \frac{3}{27}$.
5. Calculate the decimal value and round to two decimal places: $$\frac{3}{27} = \frac{1}{9} = 0.1111...$$ Rounding to two decimal places gives 0.11.

Final Answer: The minimum page rank is 0.11.
