IIT Madras
Mathematics 2
Matrices

Matrices

https://youtu.be/rnIDlZnrCc0

alt text alt text alt text alt text alt text alt text alt text

Of course! Here are the detailed solutions and explanations for each of the questions you provided.

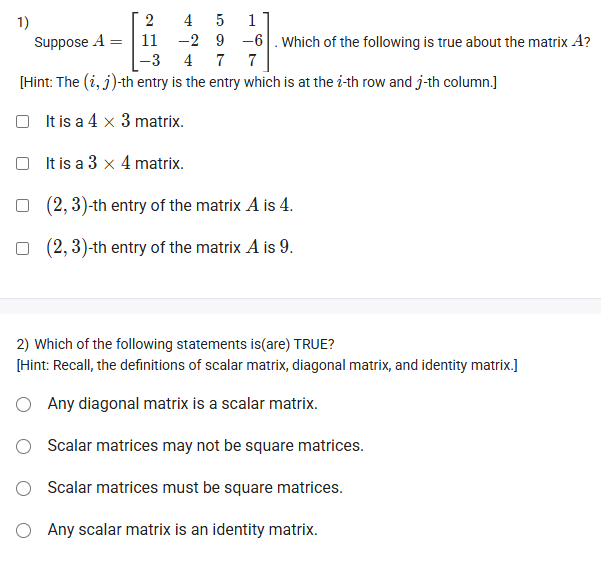

Question 1: Matrix Basics

Problem Suppose $A = \begin{bmatrix} 2 & 4 & 5 & 1 \ 11 & -2 & 9 & -6 \ -3 & 4 & 7 & 7 \end{bmatrix}$. Which of the following is true about the matrix A? [Hint: The (i, j)-th entry is the entry which is at the i-th row and j-th column.]

Options

  • It is a $4 \times 3$ matrix.
  • It is a $3 \times 4$ matrix.
  • (2, 3)-th entry of the matrix A is 4.
  • (2, 3)-th entry of the matrix A is 9.

Correct Options

  • It is a $3 \times 4$ matrix.
  • (2, 3)-th entry of the matrix A is 9.

Concepts Explained ๐Ÿ’ก

  • Order of a Matrix: The order (or dimension) of a matrix is given by (number of rows) ร— (number of columns).
  • Matrix Entry: An entry is identified by its position, (row, column). The (i, j)-th entry is the element located at the i-th row and j-th column.

Step-by-Step Solution

  1. Determine the Order: The matrix A has 3 horizontal rows and 4 vertical columns. Therefore, its order is $3 \times 4$.
  2. Identify the (2, 3)-th Entry: We need the element in the 2nd row and the 3rd column.
    • Row 2 is [11, -2, 9, -6].
    • The 3rd element in this row is 9.
    • Therefore, the (2, 3)-th entry is 9.

Question 2: Types of Matrices

Problem Which of the following statements is (are) TRUE? [Hint: Recall, the definitions of scalar matrix, diagonal matrix, and identity matrix.]

Options

  • Any diagonal matrix is a scalar matrix.
  • Scalar matrices may not be square matrices.
  • Scalar matrices must be square matrices.
  • Any scalar matrix is an identity matrix.

Correct Option

  • Scalar matrices must be square matrices.

Concepts Explained ๐Ÿ’ก

  • Square Matrix: A matrix with an equal number of rows and columns.
  • Diagonal Matrix: A square matrix where all elements outside the main diagonal are zero. The diagonal elements can be any value. Example: $\begin{bmatrix} 1 & 0 \ 0 & 5 \end{bmatrix}$.
  • Scalar Matrix: A special type of diagonal matrix where all the elements on the main diagonal are equal. Example: $\begin{bmatrix} 7 & 0 \ 0 & 7 \end{bmatrix}$.
  • Identity Matrix (I): A special type of scalar matrix where all the elements on the main diagonal are 1. Example: $\begin{bmatrix} 1 & 0 \ 0 & 1 \end{bmatrix}$.

The hierarchy is: Identity Matrix $\subset$ Scalar Matrix $\subset$ Diagonal Matrix $\subset$ Square Matrix.

Analysis of Options

  • Any diagonal matrix is a scalar matrix: False. A diagonal matrix can have different values on its diagonal (e.g., $\begin{bmatrix} 1 & 0 \ 0 & 5 \end{bmatrix}$), while a scalar matrix must have equal values.
  • Scalar matrices may not be square matrices: False. A scalar matrix is a type of diagonal matrix, which, by definition, must be square.
  • Scalar matrices must be square matrices: True. This follows directly from the definition.
  • Any scalar matrix is an identity matrix: False. A scalar matrix can have any value on its diagonal (e.g., $\begin{bmatrix} 7 & 0 \ 0 & 7 \end{bmatrix}$), while the identity matrix must have 1s.

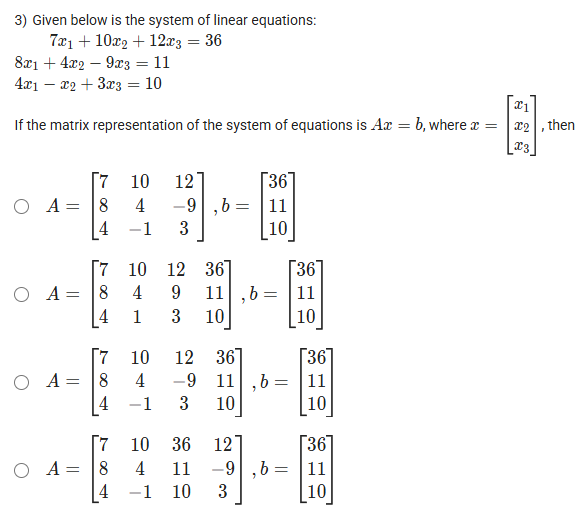

Question 3: Matrix Representation of Linear Equations

Problem Given the system of linear equations: $7x_1 + 10x_2 + 12x_3 = 36$ $8x_1 + 4x_2 - 9x_3 = 11$ $4x_1 - x_2 + 3x_3 = 10$ if the matrix representation is $Ax = b$, where $x = \begin{bmatrix} x_1 \ x_2 \ x_3 \end{bmatrix}$, then what are A and b?

Correct Option

  • $A = \begin{bmatrix} 7 & 10 & 12 \ 8 & 4 & -9 \ 4 & -1 & 3 \end{bmatrix}, b = \begin{bmatrix} 36 \ 11 \ 10 \end{bmatrix}$

Concepts Explained ๐Ÿ’ก

A system of linear equations can be written in the compact matrix form $Ax = b$.

  • A is the coefficient matrix, containing the coefficients of the variables in each equation. Each row in the matrix corresponds to an equation.
  • x is the variable vector, a column vector containing the variables.
  • b is the constant vector, a column vector containing the constants from the right-hand side of each equation.

Step-by-Step Solution

  1. Form the Coefficient Matrix (A): Write the coefficients of $x_1, x_2, x_3$ from each equation as a row in the matrix.
    • From Eq 1: [7, 10, 12]
    • From Eq 2: [8, 4, -9]
    • From Eq 3: [4, -1, 3] (Note that $-x_2$ has a coefficient of -1).
  2. Form the Constant Vector (b): Write the constants from the right-hand side of each equation as a column vector.
    • [36, 11, 10] This matches the first option.

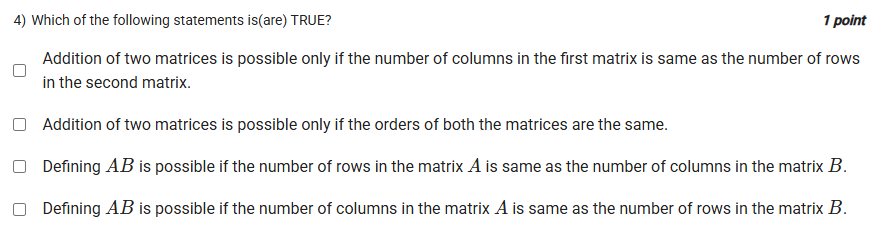

Question 4: Rules for Matrix Operations

Problem Which of the following statements is (are) TRUE?

Options

  • Addition of two matrices is possible only if the number of columns in the first matrix is same as the number of rows in the second matrix.
  • Addition of two matrices is possible only if the orders of both the matrices are the same.
  • Defining $AB$ is possible if the number of rows in the matrix $A$ is same as the number of columns in the matrix $B$.
  • Defining $AB$ is possible if the number of columns in the matrix $A$ is same as the number of rows in the matrix $B$.

Correct Options

  • Addition of two matrices is possible only if the orders of both the matrices are the same.
  • Defining $AB$ is possible if the number of columns in the matrix $A$ is same as the number of rows in the matrix $B$.

Concepts Explained ๐Ÿ’ก

  • Matrix Addition: To add two matrices, they must have the exact same dimensions (e.g., both are $3 \times 2$). The addition is then performed element-wise.
  • Matrix Multiplication: For the product $AB$ to be defined, the “inner” dimensions must match. If A is an $m \times \mathbf{n}$ matrix and B is an $\mathbf{n} \times p$ matrix, the product is possible, and the resulting matrix will have the order $m \times p$.

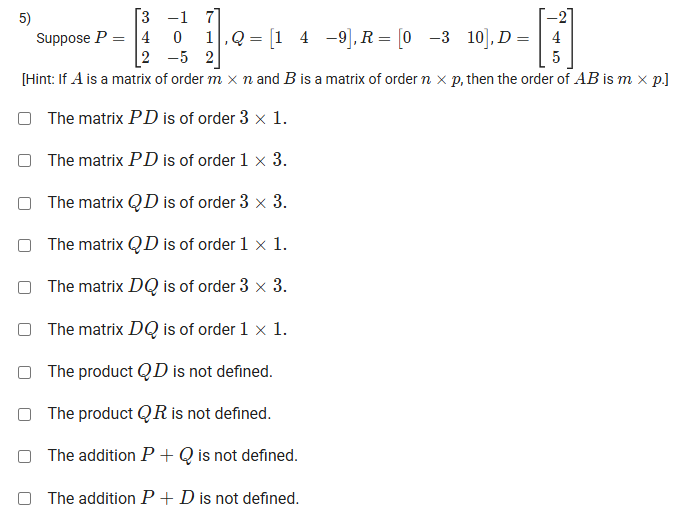

Question 5: Matrix Operations and Orders

Problem Suppose $P = \begin{bmatrix} 3 & -1 & 7 \ 4 & 0 & 1 \ 2 & -5 & 2 \end{bmatrix}, Q = \begin{bmatrix} 1 & 4 & -9 \end{bmatrix}, R = \begin{bmatrix} 0 & -3 & 10 \end{bmatrix}, D = \begin{bmatrix} -2 \ 4 \ 5 \end{bmatrix}$. Which of the following statements are true?

Correct Options

  • The matrix $PD$ is of order $3 \times 1$.
  • The matrix $QD$ is of order $1 \times 1$.
  • The matrix $DQ$ is of order $3 \times 3$.
  • The product $QR$ is not defined.
  • The addition $P + Q$ is not defined.
  • The addition $P + D$ is not defined.

Concepts Explained ๐Ÿ’ก

  • Order of Product: If A is ($m \times n$) and B is ($n \times p$), then AB is ($m \times p$).
  • Condition for Addition: Matrices must have the same order to be added.

Step-by-Step Analysis

  1. List the orders:
    • P: $3 \times 3$
    • Q: $1 \times 3$
    • R: $1 \times 3$
    • D: $3 \times 1$
  2. Check each statement:
    • PD: P($3 \times \mathbf{3}$) and D($\mathbf{3} \times 1$). Inner dimensions (3 and 3) match. The resulting order is $3 \times 1$.
    • QD: Q($1 \times \mathbf{3}$) and D($\mathbf{3} \times 1$). Inner dimensions (3 and 3) match. The resulting order is $1 \times 1$.
    • DQ: D($3 \times \mathbf{1}$) and Q($\mathbf{1} \times 3$). Inner dimensions (1 and 1) match. The resulting order is $3 \times 3$.
    • QR: Q($1 \times 3$) and R($1 \times 3$). Inner dimensions (3 and 1) do not match. Product is not defined.
    • P + Q: P($3 \times 3$) and Q($1 \times 3$). Orders are different. Addition is not defined.
    • P + D: P($3 \times 3$) and D($3 \times 1$). Orders are different. Addition is not defined.

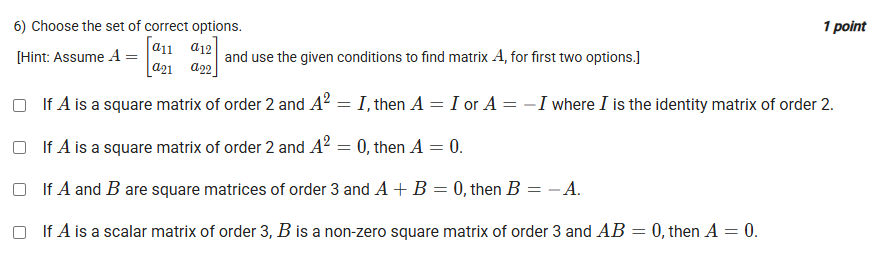

Question 6: Matrix Properties and Equations

Problem Choose the set of correct options.

Correct Options

  • If $A$ and $B$ are square matrices of order 3 and $A + B = 0$, then $B = -A$.
  • If $A$ is a scalar matrix of order 3, $B$ is a non-zero square matrix of order 3 and $AB = 0$, then $A = 0$.

Concepts Explained ๐Ÿ’ก

  • Additive Inverse: For any matrix A, there exists a matrix -A such that $A + (-A) = 0$. The matrix $B$ such that $A+B=0$ is the additive inverse of A.
  • Zero Divisors: In matrix multiplication, it’s possible for the product of two non-zero matrices to be the zero matrix ($AB=0$ where $A\neq0, B\neq0$).
  • Scalar Matrix Property: A scalar matrix is of the form $kI$. Multiplying by a scalar matrix is equivalent to multiplying by the scalar: $(kI)B = k(IB) = kB$.

Analysis of Options

  • If $A^2 = I$, then $A = I$ or $A = -I$: False. This is not generally true for matrices. A counterexample is the reflection matrix $A = \begin{bmatrix} 1 & 0 \ 0 & -1 \end{bmatrix}$. Here, $A^2 = I$, but $A$ is neither $I$ nor $-I$.
  • If $A^2 = 0$, then $A = 0$: False. A matrix where $A^k=0$ for some $k$ is called nilpotent. A counterexample is $A = \begin{bmatrix} 0 & 1 \ 0 & 0 \end{bmatrix}$. Here, $A^2 = \begin{bmatrix} 0 & 0 \ 0 & 0 \end{bmatrix}$, but $A$ is not the zero matrix.
  • If $A + B = 0$, then $B = -A$: True. This is the definition of the additive inverse in matrix algebra. Subtracting A from both sides gives $B = 0 - A = -A$.
  • If A is a scalar matrix… and $AB = 0$, then $A = 0$: True. Let A be the scalar matrix $kI$. The equation becomes $(kI)B = 0$, which simplifies to $kB = 0$. Since we are given that B is a non-zero matrix, the only way for the product $kB$ to be the zero matrix is if the scalar $k=0$. If $k=0$, then the matrix $A=kI$ is the zero matrix.

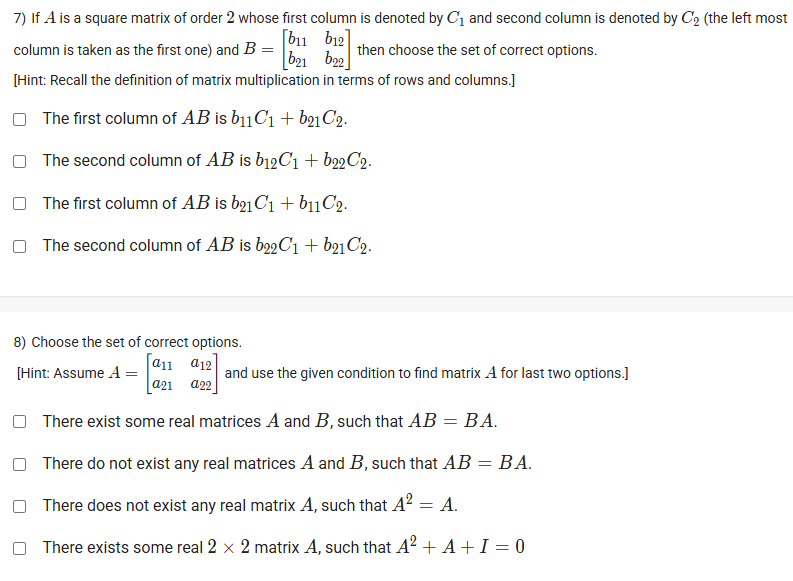

Question 7: Column-wise Matrix Multiplication

Problem If $A$ is a square matrix of order 2 whose first column is denoted by $C_1$ and second column is denoted by $C_2$ and $B = \begin{bmatrix} b_{11} & b_{12} \ b_{21} & b_{22} \end{bmatrix}$, then choose the set of correct options.

Correct Options

  • The first column of $AB$ is $b_{11}C_1 + b_{21}C_2$.
  • The second column of $AB$ is $b_{12}C_1 + b_{22}C_2$.

Concepts Explained ๐Ÿ’ก

Matrix multiplication can be viewed column by column. The j-th column of a product $AB$ is the matrix $A$ multiplied by the j-th column of the matrix $B$. This product results in a linear combination of the columns of $A$, with the coefficients coming from the corresponding column of $B$.

Step-by-Step Solution

Let $A = [C_1 | C_2]$ (representing A by its columns).

  • First Column of AB: This is calculated as $A \times (\text{first column of B})$. $A \begin{bmatrix} b_{11} \ b_{21} \end{bmatrix} = [C_1 | C_2] \begin{bmatrix} b_{11} \ b_{21} \end{bmatrix} = b_{11}C_1 + b_{21}C_2$.
  • Second Column of AB: This is calculated as $A \times (\text{second column of B})$. $A \begin{bmatrix} b_{12} \ b_{22} \end{bmatrix} = [C_1 | C_2] \begin{bmatrix} b_{12} \ b_{22} \end{bmatrix} = b_{12}C_1 + b_{22}C_2$.

Question 8: Existence of Matrices

Problem Choose the set of correct options.

Correct Options

  • There exist some real matrices $A$ and $B$, such that $AB = BA$.
  • There exists some real $2 \times 2$ matrix $A$, such that $A^2 + A + I = 0$.

Concepts Explained ๐Ÿ’ก

  • Commutativity: Matrix multiplication is not generally commutative ($AB \neq BA$). However, there are many specific cases where it is.
  • Idempotent Matrix: A matrix such that $A^2 = A$.
  • Cayley-Hamilton Theorem: Every square matrix satisfies its own characteristic equation. This theorem can be used to prove the existence of matrices that satisfy certain polynomial equations.

Analysis of Options

  • There exist some real matrices A and B, such that AB = BA: True. Many examples exist. For instance, if $A=I$ (the identity matrix), then $IB = B$ and $BI = B$, so $IB=BI$. Another example is if $B$ is the inverse of $A$ ($B=A^{-1}$), then $AA^{-1} = A^{-1}A = I$.
  • There do not exist any…: False, as shown above.
  • There does not exist any real matrix A, such that Aยฒ = A: False. Both the zero matrix ($0^2=0$) and the identity matrix ($I^2=I$) are examples. They are called idempotent matrices.
  • There exists some real 2x2 matrix A, such that Aยฒ + A + I = 0: True. By the Cayley-Hamilton theorem, a matrix must satisfy its characteristic polynomial. The polynomial $\lambda^2 + \lambda + 1 = 0$ has complex roots. A real matrix can have complex eigenvalues (as long as they appear in conjugate pairs). A rotation matrix for an angle of $120^\circ$ (or $2\pi/3$ radians) is an example of such a matrix.

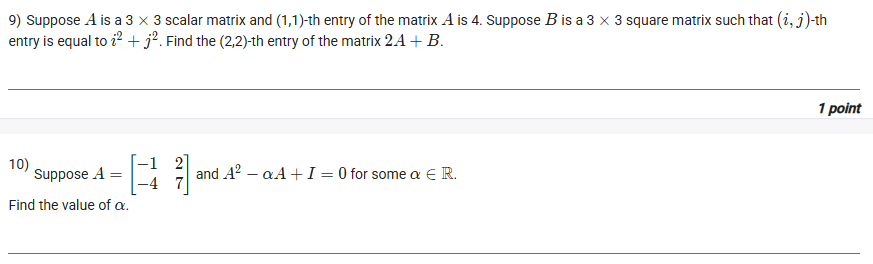

Question 9: Scalar Matrix Operations

Problem Suppose A is a $3 \times 3$ scalar matrix and (1,1)-th entry of the matrix A is 4. Suppose B is a $3 \times 3$ square matrix such that (i, j)-th entry is equal to $i^2 + j^2$. Find the (2,2)-th entry of the matrix $2A + B$.

Answer: 16

Concepts Explained ๐Ÿ’ก

  • Scalar Matrix: A diagonal matrix where all diagonal entries are equal. All non-diagonal entries are 0.
  • Matrix Operations: Scalar multiplication (kA) and addition (A+B) are performed element-wise. The (i,j)-th entry of kA+B is k \cdot a_{ij} + b_{ij}.

Step-by-Step Solution

  1. Determine the (2,2)-th entry of A: A is a scalar matrix, and its (1,1)-th entry is 4. This means all its diagonal entries are 4, and all non-diagonal entries are 0. So, the (2,2)-th entry of A, aโ‚‚โ‚‚, is 4.
  2. Determine the (2,2)-th entry of B: The formula for an entry in B is bแตขโฑผ = iยฒ + jยฒ. For the (2,2)-th entry, i=2 and j=2. So, bโ‚‚โ‚‚ = 2ยฒ + 2ยฒ = 4 + 4 = 8.
  3. Calculate the (2,2)-th entry of 2A + B: The (2,2)-th entry of the final matrix is 2 \cdot aโ‚‚โ‚‚ + bโ‚‚โ‚‚. 2 * (4) + 8 = 8 + 8 = 16.

Question 10: Cayley-Hamilton Theorem

Problem Suppose $A = \begin{bmatrix} -1 & 2 \ -4 & 7 \end{bmatrix}$ and $A^2 - \alpha A + I = 0$ for some $\alpha \in \mathbb{R}$. Find the value of $\alpha$.

Answer: 6

Concepts Explained ๐Ÿ’ก

Cayley-Hamilton Theorem: This fundamental theorem states that any square matrix satisfies its own characteristic equation.

  • Characteristic Equation: For a matrix A, the characteristic equation is given by det(A - ฮปI) = 0, where ฮป is a variable.

Step-by-Step Solution

  1. Find the characteristic equation of A: First, find the matrix A - ฮปI: $A - \lambda I = \begin{bmatrix} -1 & 2 \ -4 & 7 \end{bmatrix} - \lambda \begin{bmatrix} 1 & 0 \ 0 & 1 \end{bmatrix} = \begin{bmatrix} -1-\lambda & 2 \ -4 & 7-\lambda \end{bmatrix}$
  2. Calculate the determinant: det(A - ฮปI) = (-1-\lambda)(7-\lambda) - (2)(-4) = -7 + \lambda - 7\lambda + \lambda^2 + 8 = \lambda^2 - 6\lambda + 1 So, the characteristic equation is $\lambda^2 - 6\lambda + 1 = 0$.
  3. Apply the Cayley-Hamilton Theorem: The theorem states that A satisfies this equation. We replace ฮป with A (and the constant term 1 with 1 \cdot I): $A^2 - 6A + I = 0$
  4. Compare and find ฮฑ: We are given the equation $A^2 - \alpha A + I = 0$. Comparing this with the equation from the theorem, we can see that $\alpha = 6$.
